The ACI Interfaces between Irrigation Control and Air Control

Wxline integrates field sensors (input and output) and the Air Connect Interface to enable Grounds teams to control precision air functions using the irrigation system infrastructure. The ACI enables irrigation software to control remote equipment such as pumps, fans, water flow, and heat.

  • Direct wired connection to irrigation system controller

  • Secure encoded communications

  • Protection by way of integrated relay control logic

  • Low-voltage outputs for controlling relays

  • External LED indicators of system status

ACI DELIVERS:

ACI SPECIFICATIONS:

INSTALLATION: Wall-mountable.

ENCLOSURE: 16 x 14 x 8 inch enclosure with clear door.

CONTROL OUTPUT: 24 VAC (600 mA per output or 1.8 A total).

OUTPUT DELAY RANGE: 0-320 seconds per output.

Air Connect Interface

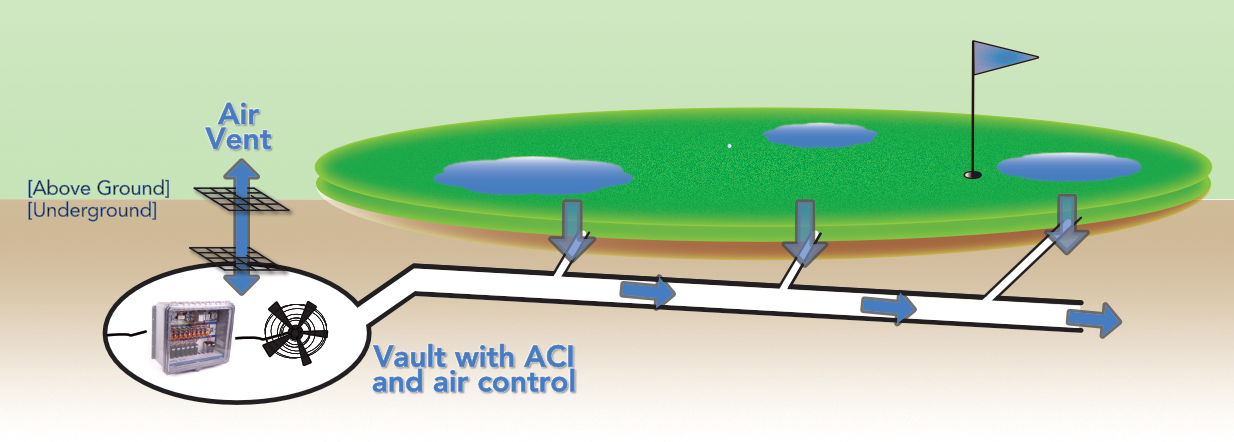

Interface between Irrigation system controls and the Air Control System beneath the greens areas of a golf course.
